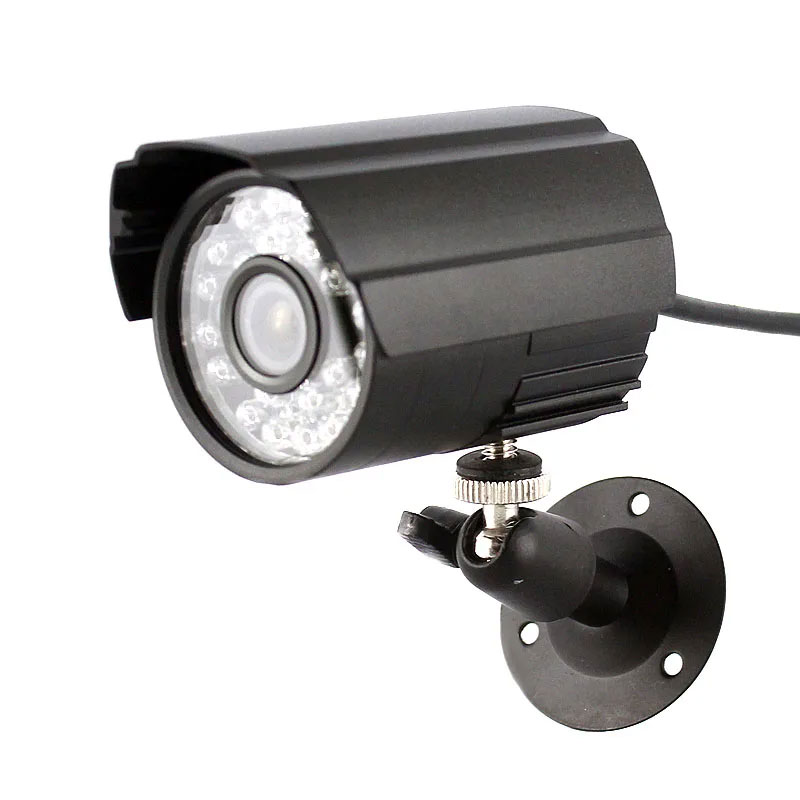

SMTKEY 1000TVL Color Video Metal Housing Surveillance Security Camera Day&Night Indoor Outdoor Analog CVBS CCTV Camera

Feature:1/4 " / 1/3" CMOS Color Image sensorResolution : 700TV Line / 1000TV LineTV Color System : available for NTSC or PALOperating temperature -10 C ~ +50 CMinimum Illuminat

Products Inquiry

Name * :

Tel * :

Email :

CompanyName :

Message :

Product Details

------------------------------------------------------------------------------------------------------------------

Feature:

1/4 " / 1/3" CMOS Color Image sensor

Resolution : 700TV Line / 1000TV Line

TV Color System : available for NTSC or PAL

Operating temperature -10 C ~ +50 C

Minimum Illumination: 0.1 Lux (The lower the Best)

Voltage : 12V DC

Power Adapter is not included

------------------------------------------------------------------------------------------------------------------

Specifications:

Image Sensor:	1/4" or 1/3" CMOS color image sensor
Horizontal Resolution:	700TV Line / 1000TV Line
Lens:	3.6 mm standard
Signal system:	NTSC / PAL
IR Illuminators:	24 LEDs
wavelengh	850NM
Back Light Compensation	Auto
Auto Iris	Video / DC
Gamma	0.45
S/N Ratio:	48db (AGC-OFF)
Scanning System:	2:1 Internal
Synchronization System :	Internal Synchronization
Shutter Speed:	1/60-1/15000 (second)
Video Output:	1.0Vp-p, 75 OHM
Power Supply:	12V DC (Sold separately)
Operation Temperature	-10C ~ 50C / 0F ~ 110 F
Weatherproof	No
Dimensions	10109cm
Weight	0.28kg

------------------------------------------------------------------------------------------------------------------

Packaging included:

1x Dome CCTV Camera

------------------------------------------------------------------------------------------------------------------
